Model No. : TOC-4412

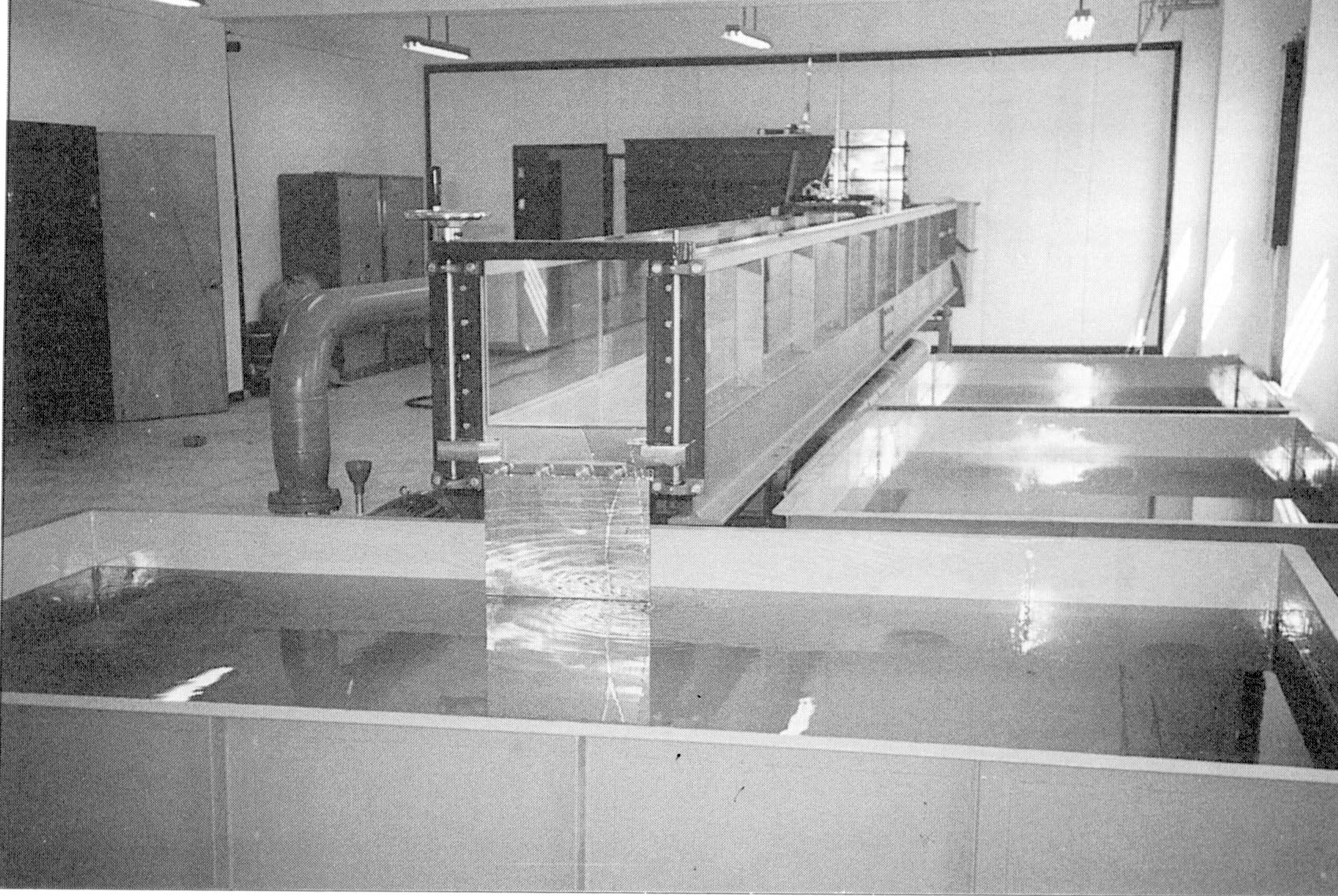

1. Open Channel
a. Dimensions : W400mm x H400mm xL12M
b. Side wall of Channel :Total length 9M at both sides of channels flat
plate glass plate 10mm.
c. Material of Channel : SUS plate 4.5mm
d. Plate Girder : I beam 300 x 150mm
2. Variable Gradient Apparatus
a. Variable Gradient : 0 - 1/30
b. Drive Motor of jack : 0.75KW AC220Volt, 60hz, 3-phase
c. Indicator : Scale with fixed measuring length
3. Weir Tank
a. Inside dimension : W1200 x H700 x L2500mm
b. Weir : Triangle Weir, Rectangle Weir
c. Material of Tank : Steel plate 4.5mm
4. Pump Line
a. Drive Motor : 7.5HP, AC220V, 60hz, 3-phase
b. Diameter of Pump : 150mm Centifugal pump
c. Flow Rate : Max. 45Lilter/sec. approx.
5. Accessories
a. Triangle & Rectangular 1 set
b. Sluice Gate 1 ea
c. Board Crested Weir 1 ea
d. Dam model 1 ea
e. Sharp Crested Weir 1 ea
f. Cart 1 ea
g. Control Panel 1 ea
h. Point & Hook Gauge 1 ea
6. Option
Parshall Flume
