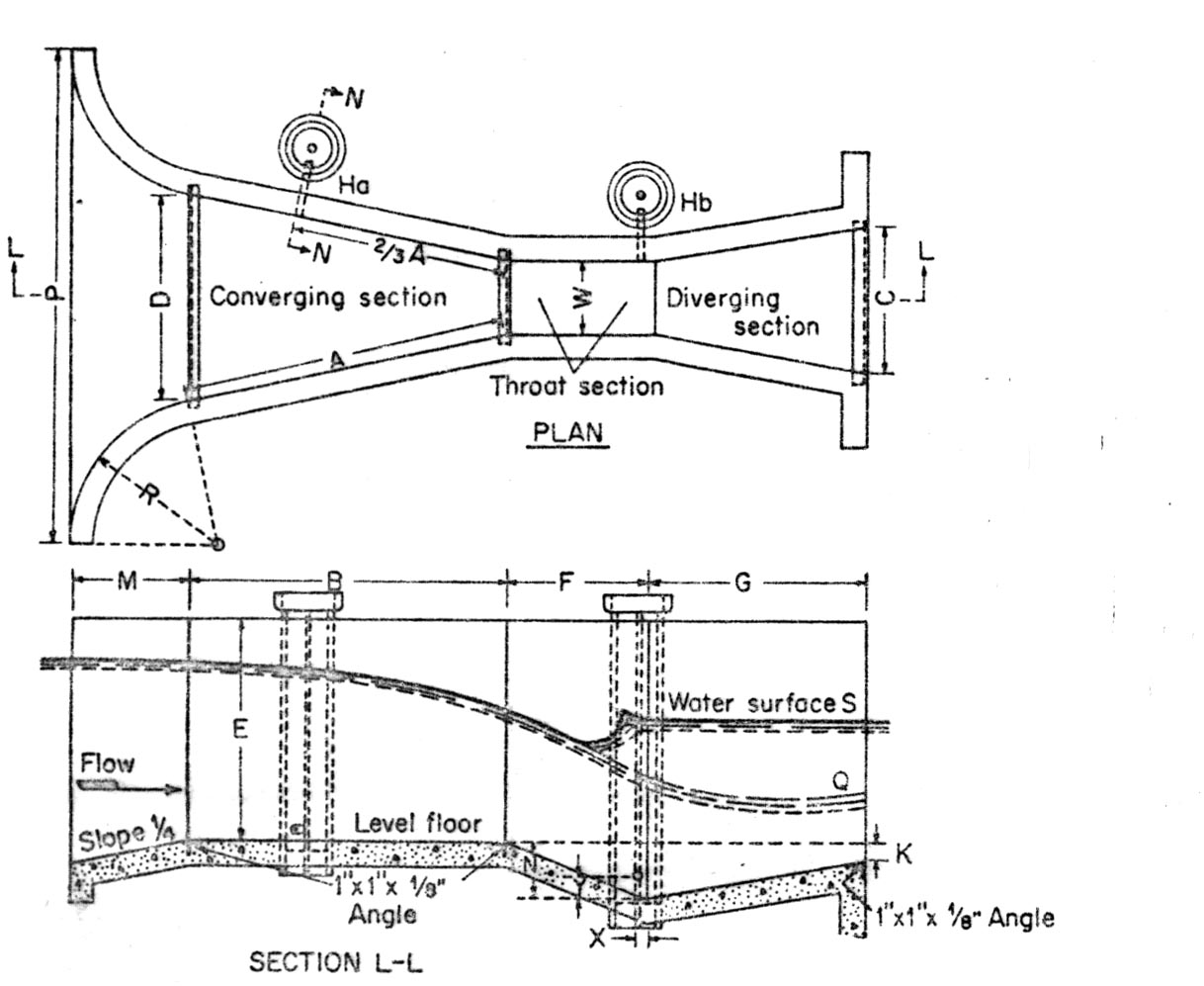

Parshall Flume
Model No. : Parshall

A. Features :

   Parshall flume은 작은 하천이나 인공수로내에
   흐르는 유량을 측정하는데 흔히 사용되는데 특히
   수원에 가가운 위치에서 유량을 측정코저 할 경우
   토사유출로 인한 문제점 등을 제거할 수 있어서 웨어
   보다 좋은 유량계측 장비입니다.

B. Specifications :

   Plate Girder         : SUS 4t
   Throat Section Side  : Acryl 12t
   Parshall flume Size  : 610 x 610 mm
   Converging Section   : Approx. 1,207(W) x 1,596(L)mm
   Diverging Section    : Approx. 914(W0 x 914(L)mm
   Width Between Ends of Curved wing Walls   : Approx. 1,954 mm
   Width of Upstream End of Flume            : Approx. 1,207 mm
   Width of Downstream End of Flume          : Approx. 914 mm
