Wave Generator  Model : DY-RWG

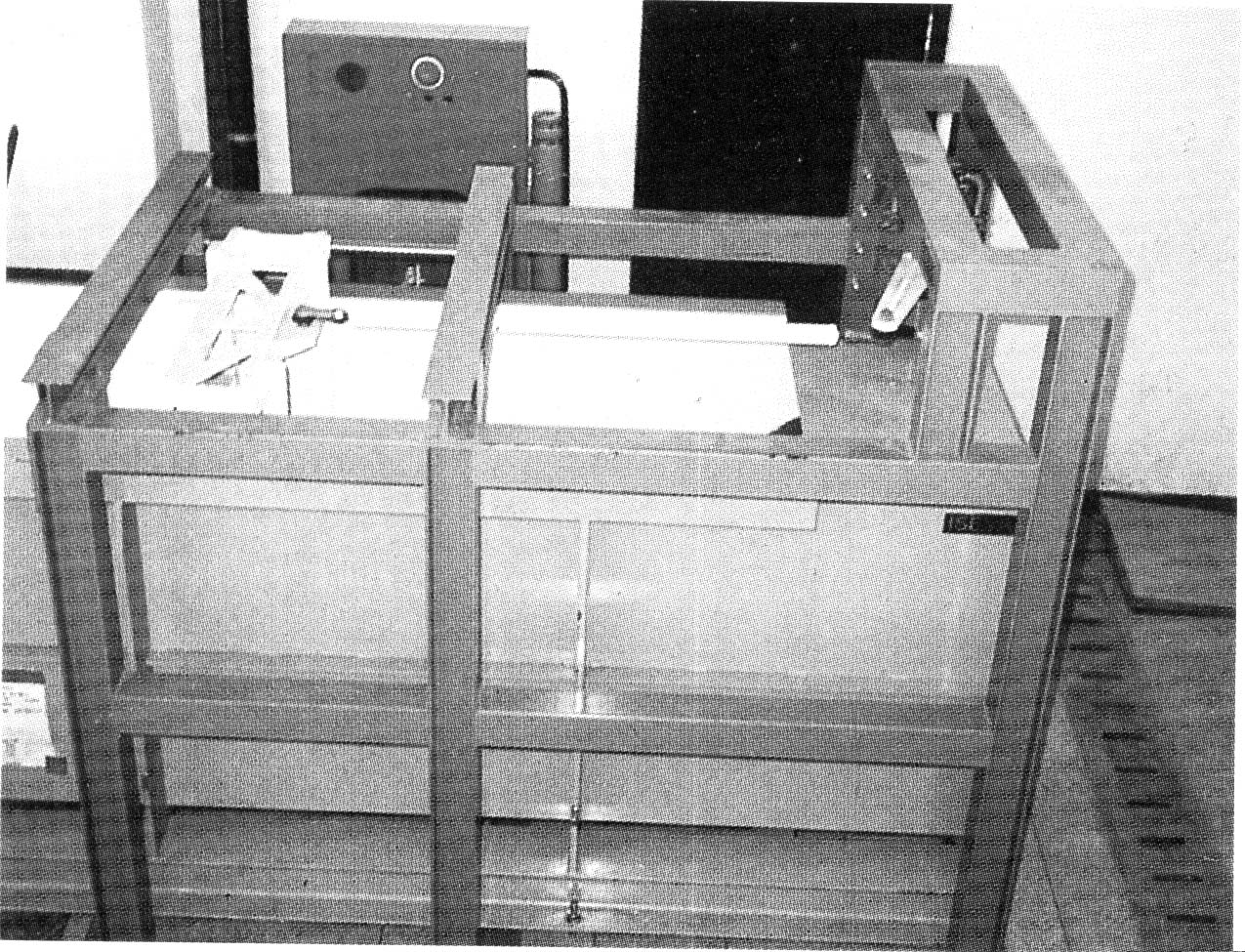

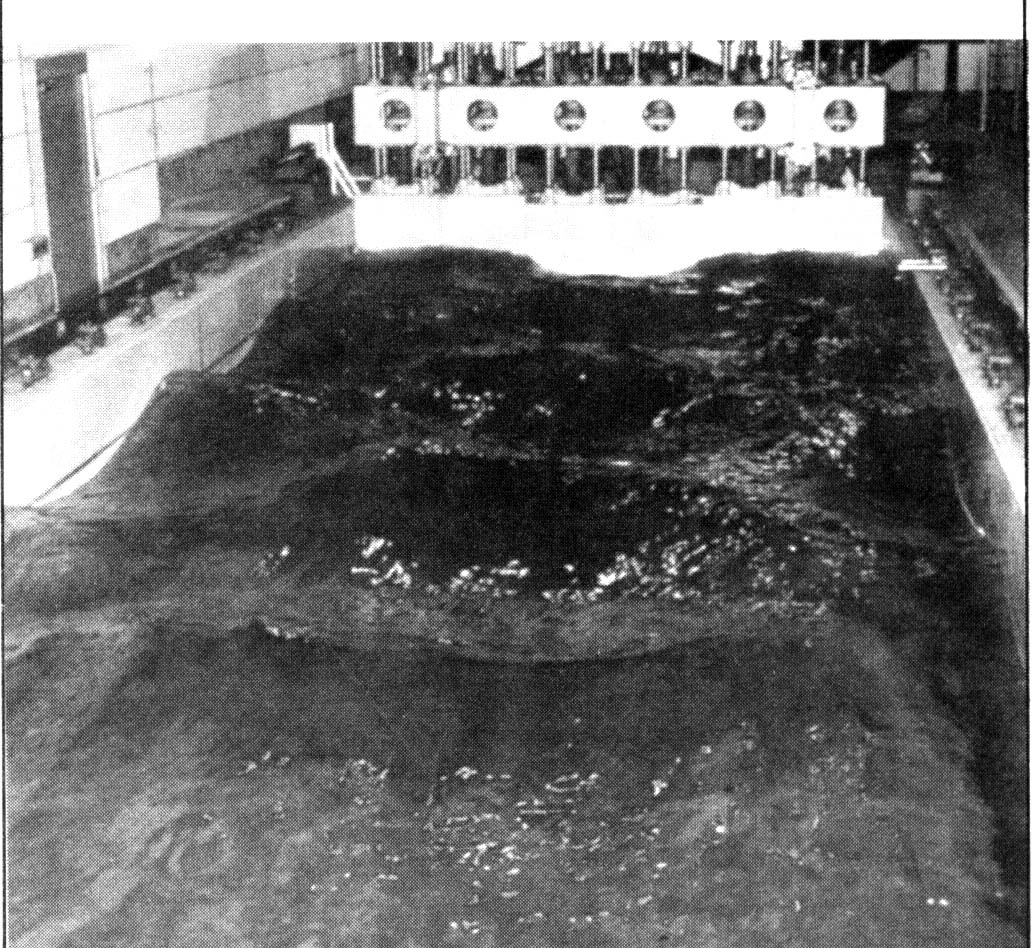

           WAVE FLUME                              WAVE GNERATOR


A. Features :
   Vest experience in supplying special system for the widest variety of hydraulic experimental
   equipments including basic principles. Civil engineering hydraulics, marine engineering, oceanic,
   water resources engineering and concerned measuring instruments.

B. Specifications :
   1. Flune                      : 600W x 1,000H x 25,000L mm
      Materials                  : Steel plate and angle
      Flame                      : Steel bar and channel angle
      Glass Windows              : Total Length 15 Meter one side of tank
      Damper                     : Multi-hole plate - SUS 304
      Allowable deflection       : Less than 2mm in full
      Drain                      : 50A (2 points)
      Wave Height                : max. 30cm
      Wave Period                : 1 - 7 sec.

   2. Generaotr system
      Type                       : Flutter Type
      Wave Board                 : SUS 304, 4t
      Driving Motor              : AC220V, 3-phase, 60Hz, 2.2KW
      Control Method             : Inverter Control Method
