Permeability Test Set   Model : DY-PT

A. Features :
   This apparatus has been designed to allow students to
   make and experiment study of flow though permeable media.
   Using two dimensional models of hydraulic structures
   supported on sand foundations it is possible to determine
   flow lines, seepage rates and the distribution of
   uplift pressure.

B. Specifications :

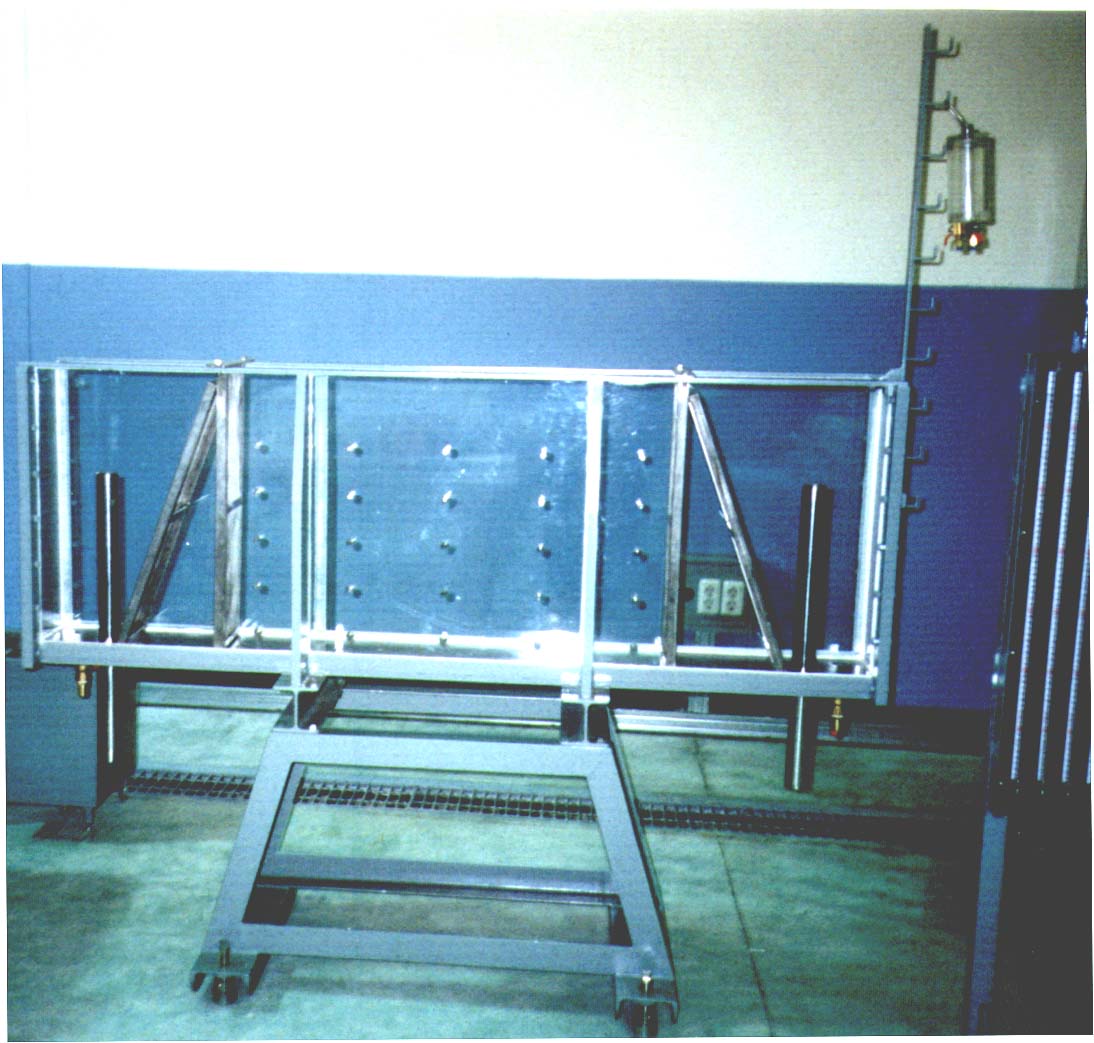

   1. Pereability Tank
      a. Dimensions           : 200W x 600H x 1,800L mm
      b. Materials
         Front Side           : Glass Plate, 15t mm
         Rear Side            : Acryl Plate, 15t mm
         Bed                  : SUS Plate, 6tmm
         End Plate            : SUS Plate, 4.5tmm
         Frame                : Steel Accurate Flat Bar
      c. Adjustable Over-Flow : Made of Stainless Pipe,
                                Dia. 50mm approx.
      d. Pressure Tapping of Bed  : 12 ea, Made of Stainless
                                Steel with Pore Stone Filter
      e. Measuring Hole for Insertion of
            Pressure Tubing   : Rear Side Wall made by Acryl has 25 measuring holes
      f. Pressure Tubing      : 10 ea. Made of Stainless Pipe with Pore Stone
      g. Sand Stopping Filter : 2 ea., Made Stainless Frame and mach Filter

   2. Multi-Tube Manometer Stand
      a. Demensions           : 720W x 440D x 1,340H mm
      b. Rack                 : made of Steel with Adjustable supports
      c. Panel                : Made of P.V.C. with Measuring Scale
      d. Manometer Tubes      : 22 ea
      e. Effective Measuring Length : 550 mm
