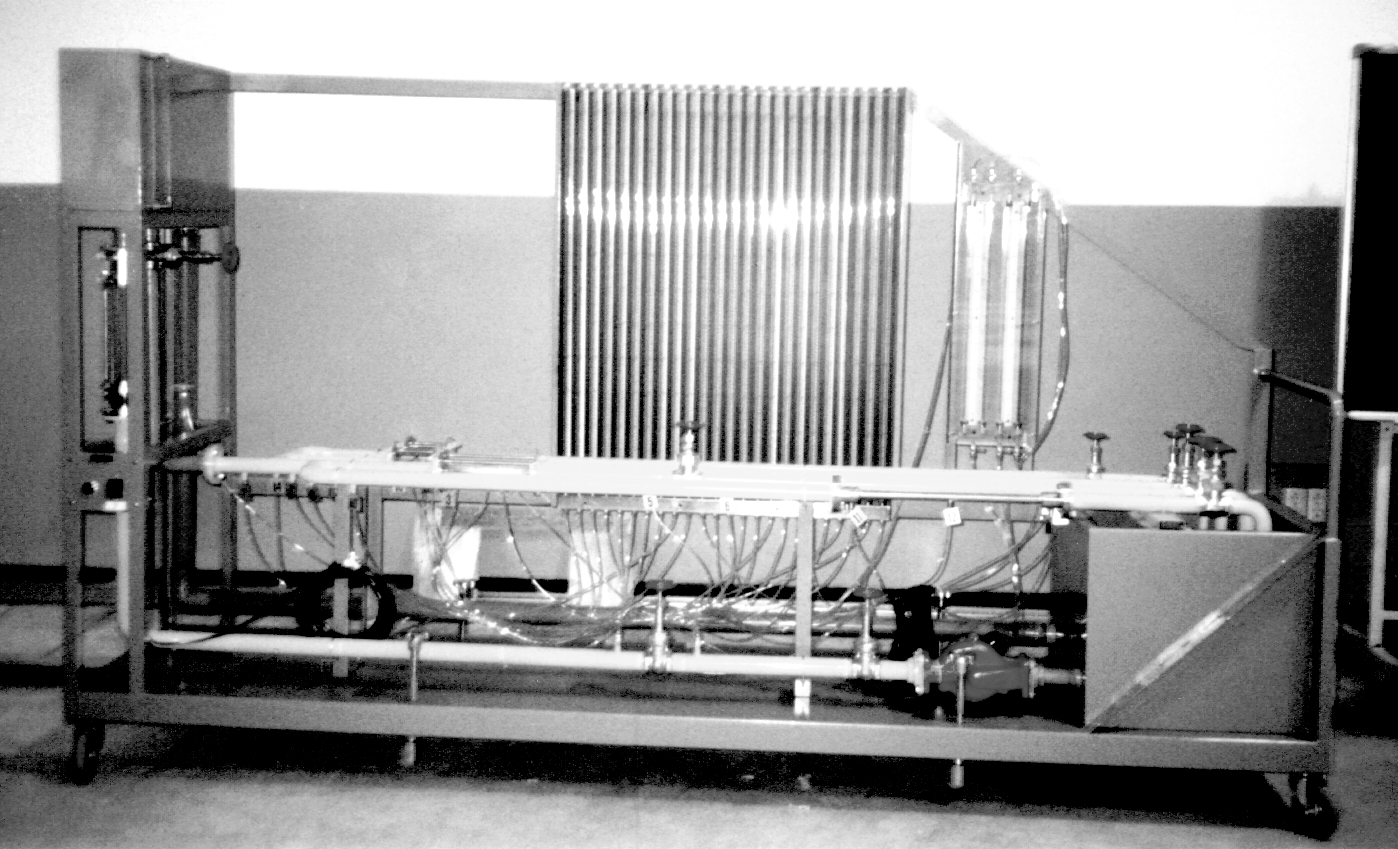

Pipe Flow Experimental System Model : DY-PF100
1. General Specification
Space Required for Setting : 3,200W x 700D x 1,800H mm
Stand : Made of steel : Attached with caster and fixing metal fittings
Water Storage Tank : Made of Stainless Steel : Capacity 130 Liter
Elevated Tank : Made of Stainless Steel : Capacity 27 Liter
Overflow Full-Wdith Weir : Made of Stainless Steel : Width 20cm
Pump : Bore 32A : 0.75KW, AC220V, 3-phase
Pump Switch : Attached with a protecting circuit combinedly serving as
a motor breaker
Float-type Flow Gauge : Range of Measurement : 0.25 to 2.5 L/sec.
Pipe Line : Made of Stainless Steel : 32A x 2 path, 25A x 1 path,
20A x 1 path
Flow Meter ; Venturi tube : 32A transparent body 1 ea
In-Pipe Nozzle : 25A transparent body 1 ea
In-Pipe Orifice : 20A transparent body 1 ea
Multi-tube Manometer : Glass tube intermal dia. 8 mm
Number of pipes, 20 ea
(Attached with an 1 mm unit scale effective measuring length 1,200mm)
Mercury Manometer : Effective measuring range 600 mmHg
2. Valve
Pump Flow Amount Adjusting Valve : 32A Sluice Valve 1 ea
Mercury Manometer Connected Valve : 32A Sluice Valve 1 ea
Multi-Tube Manometer connected Valve : 32A Sluice Valve 1 ea
Flow amount Adjusting Valve for : 32A Sluice Valve 1 ea
respective lines 25A Sluice Valve 1 ea
20A Sluice Valve 1 ea
Merging Valve : 20A Sluice Valve 1 ea
Pipe line Supply Valve : 40A Sluice Valve 1 ea
Water Storage Tank Exhaust Valve : 40A Stop Valve 1 ea
3. Accessories
a. Spare Vinyl Hose : 1 meter x 2 PCs
b. Mercury : 1 Lb x 1 bottle
c. Power Source Cord : 5 meter
