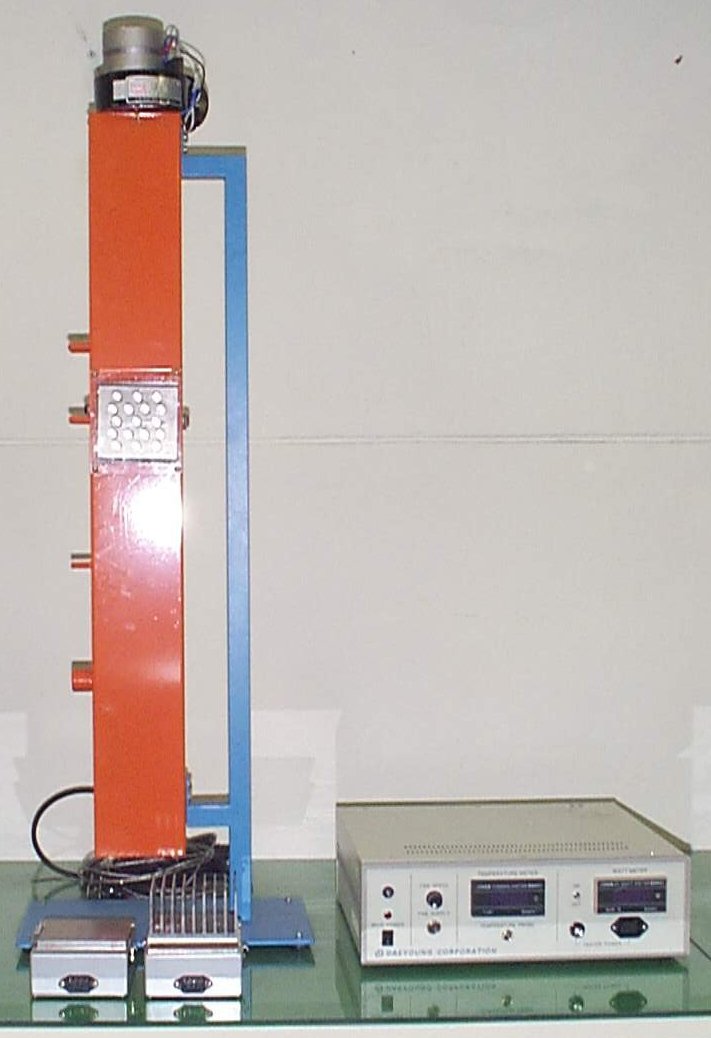

Free and Forced Convection Heat Transfer Unit
Model No. : DY-FFCHTU
Specification
Dimensions of air duct
1,020mH x 0.122mW x 0.070m D
Basic Plate Size : W400mm x D250mm
Fan
Sirocco Fan
Dimensions of Heat
exchanger rear plates
110mm x 100mm
Temperature Sensors
"K" type Thermocouple
Max. Air Velocity
2.5 m/sec.(typical)
Control Box
Digital Wattmeter
Range : 0 to 80W (nominal)
Resolution : 0.1W
Digital Temp. Meter
Range : 0 to 100℃
Resolution : 0.1℃
Protection
Fuse
Power Supply
AC220V, 60Hz
Size
W350mm x D250 mmx H150mm
