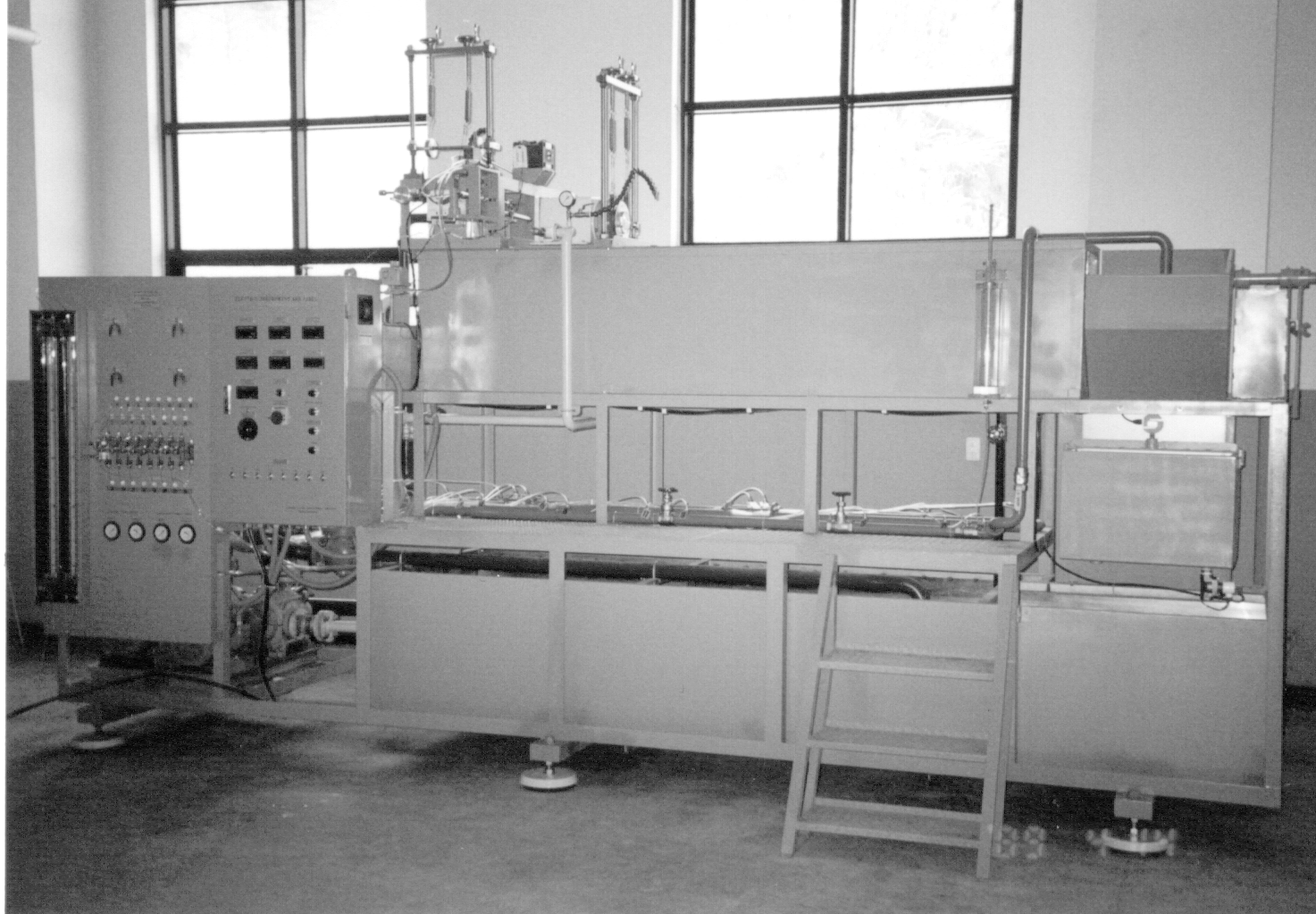

Hydraulic Experimental Apparatus Model : DY-23

1. Water Pump and            Type     : Centrifugal Pump

   Drive Motor, 1 stage      Drive IV : AC220V, 3.7KW

                             Access   : Pressure Gauge -76cm Hg, 4 Kg/§²



2. Water Pump and            Type     : Centrifugal Pump

   Drive Motor, 1 stage      Drive IV : AC220V, 2.2KW

                             Access   : Pressure Gauge -76cm Hg, 6 Kg/§²



3. Francis Water turbine     Head x Flow rate      : 15m x 270 liters/min.

                             Accessories           : Prony-brake-Dynamometer

                             Max. Efficiency       : 65%



4. Pelton Water Wheel        Head x Flow Rate      : 20m x 135 liters/min.

                             Accessories           : Prony-brake-Dynamometer

                             Max. Efficiency       : 60%



5. Channel                   Size                  : 0.6W x 0.6H x 2.8L meter

                             Material              : Steel, 3.2mm thick

                             Flow rate Measurement : Triangle Weir

                             Accessories           : Point & Hool Gauge



6. Water Sump Tank           Size                  : 1.0W x 0.6H x 3.5L meter

                             Material              : Steel, 3.2mm thick

                             Accessories           : Level meter



7. Hydraulic Control Vesse   Size                  : Dia. 300 x 400L mm

                             Pressure Gauge        : 0 - 4 Kg/§²



8. Friction Loss             Straight Pipe Line    : 1-1/4B

   Measurement Device        Pipe Circuit Element  : Small radius 90deg. band

                                                     Sudden expansion and contraction

                                                     gate valve, glove valve and cocl

                             Flow Equipment        : Pitot tube, Venturi meter, Orifice

                                                     Load Cell, Volumetric Bench
