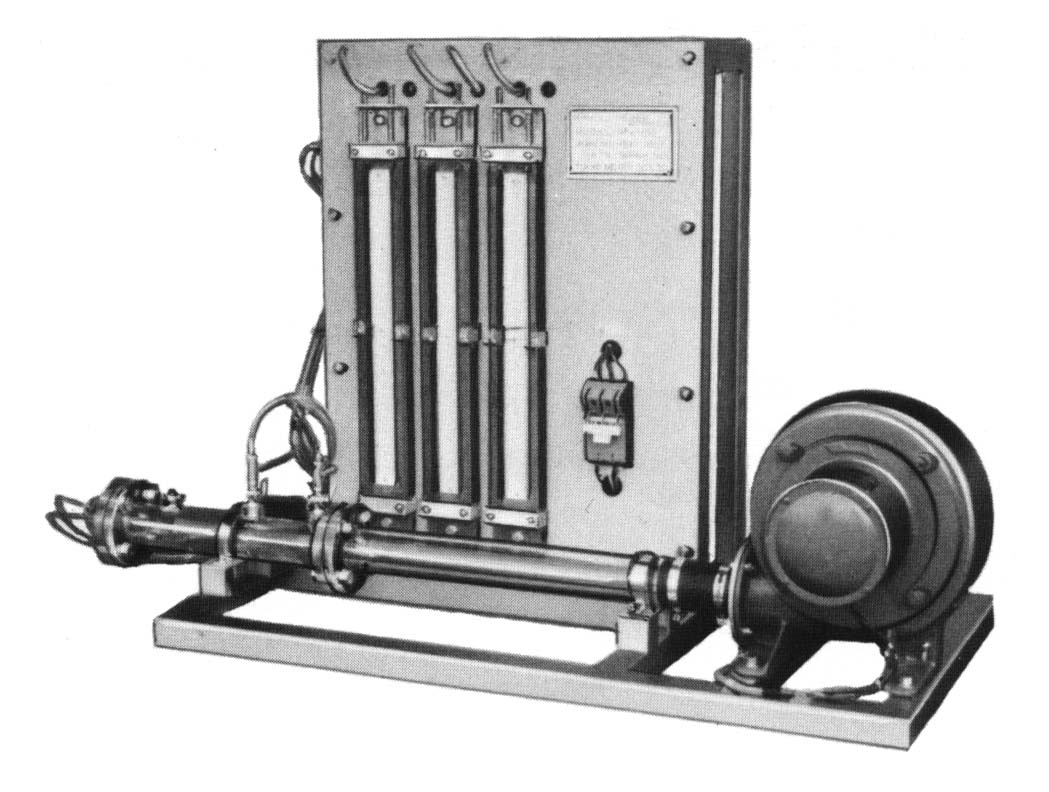

A. Features :

   - Total head, velocity head and static head display
     on panel

   - Full view of Venturi and duct

   - Both qualitative and quantitative analysis

   - Near and compacy

B. Specifications :

    Dimension

1600 x 700 x 800 mm

    Fan Form
    Delicery Flow rate(max.)

Centrifugal
5.0§©/min.

    Drive Motor Power

AC220V, 60hz 200 Watts

    U tybe Water Manometer
       Total head Indicator
       Static head Indicator
       Velocity head indicator


0 - 400 mmH₂O
0 - 400 mmH₂O
0 - 400 mmH₂O

   Pitot Static Tube
      Inlet, Outlet, Throat (dai.)

 50mm, 50mm, 30mm
